Quartz Excellence in Labels

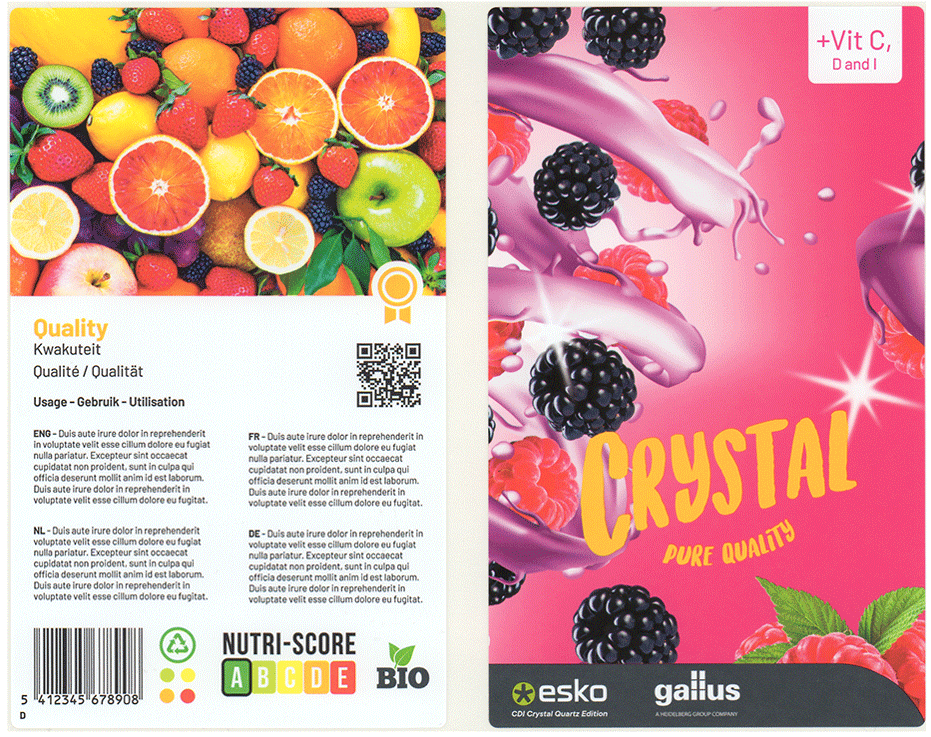

This label showcases the advanced capabilities of CDI Quartz Imaging for Labels combined with the precision of Crystal VQ screening. The result is a high-definition, vibrant label that sets new standards in print quality.

Used Printing Technologies

Printing Press

Labelmaster/440

Ink

Siegwerk SICURA FLEX 39-8

Imaging

CDI Quartz

Color Target

Fogra 51

Plates

DuPont ESXR 1.14

Substrate

PP White UV (HD-FSC)

Exposure

Esko XPS Crystal

Calibration

Print Control Wizard

Anilox

Y = 460 L/cm / 3,5 g/m²
M = 480 L/cm / 2,2 g/m²
C = 480 L/cm / 1,8 g/m²
K = 460 L/cm / 3,5 g/m²

Tape

Tesa medium soft

Screening

Crystal VQ

Lineature

225 lpi

Highlights

Smoother solid appearance with UV inks
More intensive and smoother ink laydown with UV inks with low-volume Anilox.
Smooth fades
Smooth fades and vignettes due to reduced dot gain of Quartz screening and highly controlled dot bridging.
Good highlight capabilities
Stable and repeatable transitions to zero.
